Ring Illuminator K LED segmentable

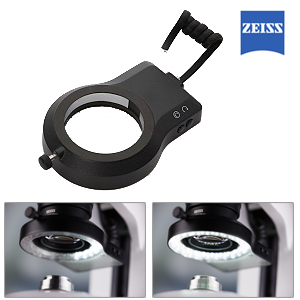

Zeiss ring light K LED segmentable suitable for the Stemi 305 and 508. The shadow-free ring light offers four different modes: full, half, quarter circle or 2 opposite quarter circles.

Turn on the ringlight, then manually rotate the light direction in 90° increments to quickly detect scratches, defects, contaminants or residue without moving your sample. Or use the automatic rotation mode to get a spatial impression of the object surface through changing shadow effects.

Zeiss ring light K LED segmentable suitable for the Stemi 305 and 508.

Properties:
• 48 LEDs in 2 rows, tilted
• FWD 50...300 mm, mount d=66 mm
• Separate controls for segmentation and rotation
• 4 modes: Full, half, quarter circle, 2 facing quarter circles
• Manual turning in 90° steps or continuous rotation
• For stands K EDU/LAB/MAT or controller K LED
