Ready - Set

extraction unit

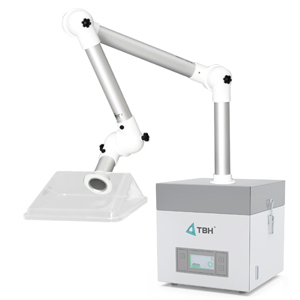

Extraction and filter system BF 5 - Complete Set

Compact saturation filter system equipped with differential pressure monitored filter elements to ensure the required separation efficiency. The use of low-noise blowers enables operation even in sensitive environments. Also ideally suited for continuous operation. Complete set incl. mounting cover, adjustable extraction arm and transparent extraction hood. Ideal for installation next to devices such as immersion electroplating, soldering devices etc.. The movable 3-joint suction arm can be easily adapted to almost any set-up position and the transparent hood ensures a good view of the work area.

Advantages:
- low-noise operation due to special fan
- incl. initial filter equipment
- easy filter change
- Control interface with basic functions
- Suction arm with 3 joints (850mm)
- Suction hood transparent 245x220mm

Fields of application:
- soldering operations
- laser processing
- Working processes with sticky/moist dusts
- Working processes with vapours/gases

Technical data:
Air volume flow free blowing: max. 130 m³/h
Effective air volume flow: 20 - 100 m³/h
Protection class: 1
Sound level: 58 dB(A)
Filter: 2-stage filter (particle + activated carbon filter)
Dimensions extraction (H x W x D): 315 x 300 x 300 mm
Weight: 18 kg

nameworkstationssuction performancemodelmanufactureitem No.
extraction unit> 1130 m3/hBF-5 SETTBH694215
