Elmasonic S

Elmasonic S ultrasonic units are available in various unit sizes and different tank volumes. Microprocessor controlled ultrasonic cleaning with sweep technology signify the state of the art. The user-friendly LED display ensures ease of use.

The sweep function, developed in the Elma laboratories, guarantees a homogenous sound field distribution by way of continous shifting of the sound field maxima. The degas function available on the new units accelerates very efficiently the degassing process int the cleaning liquid, particularly in freshly mixed baths.

ultrasonic unit Vorheriges Produkt3/8Nächstes Produkt

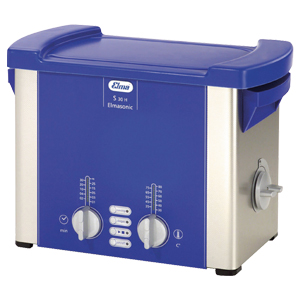

Elmasonic S30H - with heating

Elmasonic S ultrasonic units are available in various unit sizes and different tank volumes. Microprocessor controlled ultrasonic cleaning with sweep technology signify the state of the art. The user-friendly LED display ensures ease of use.

Main features:
- high-performance transducer system with 37 kHz.
- cleaning tank made of cavitation-resistant stainless steel
- easy-to-use and clear control unit, perfectly sealed so that no liquid can penetrate into the electronics.
- LED-display with ultrasonic functions
- turning knob for the pre-selection of the cleaning period
- Continous operation or short-time operation between 1 to 30 minutes
- the cleaning process can be switched on by hand or automatically (temperature-controlled)
- the optional sweep function guarantees an optimum sound field distribution in the cleaning bath due to a modulation of the frequencies.
- the degas function allows a quicker degassing of the cleaning liquid.
- time-controlled "Autodegas" for the efficient degassing of freshly mixed cleaning liquids.
- dry run proof heating
- the heating process can be switched by a turning knob from 30° to 80°C in steps of 5° degrees.
- LED display for setpoint and actual value of the liquid temperature
- the turning knob on the side allows an easy draining of the cleaning liquid through the drain duct on the back of th unit.
- carrying handles are made of ergonomically shaped plastic

Tank lid is not included in delivery!

Specifications:
Tank volume: 2.75 litres
Tank internal dimensions (W x D x H): 240 x 137 x 100 mm
Ultrasonic peak power: 320 watts
Heating power: 200 watts
Material: housing and tank made of stainless steel
Unit external dimensions (W x D x H): 300 x 179 x 214 mm
Drain duct: 3/8''
Weight: 3300 g

nametypecapacitytank sizeexternal measurementoutputitem No.
ultrasonic unitS30H2.75 litres240 x 137 x 100 mm (WxDxH)300 x 179 x 214 mm (WxDxH)320 watts691410
