ultrasonic unit

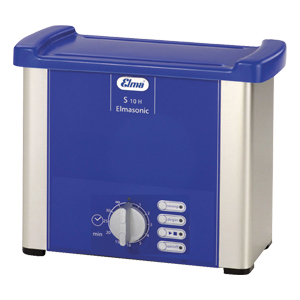

Elmasonic S10
Elmasonic S ultrasonic units are available in various unit sizes and different tank volumes. Microprocessor controlled ultrasonic cleaning with sweep technology signify the state of the art. The user-friendly LED display ensures ease of use.
Main features:
- high-performance transducer system with 37 kHz.
- cleaning tank made of cavitation-resistant stainless steel
- easy-to-use and clear control unit, perfectly sealed so that no liquid can penetrate into the electronics.
- LED-display with ultrasonic functions
- turning knob for the pre-selection of the cleaning period
- Continous operation or short-time operation between 1 to 30 minutes
- the cleaning process can be switched on by hand or automatically (temperature-controlled)
- the optional sweep function guarantees an optimum sound field distribution in the cleaning bath due to a modulation of the frequencies.
- the degas function allows a quicker degassing of the cleaning liquid.
- time-controlled "Autodegas" for the efficient degassing of freshly mixed cleaning liquids.
Specifications:
Tank volume: 0.8 litres
Tank internal dimensions (W x D x H): 190 x 85 x 60 mm
Ultrasonic peak power: 240 watts
Material: housing and tank made of stainless steel
Unit external dimensions (W x D x H): 206 x 116 x 178 mm
Weight: 2000 g
