ProofMaster PRO

• -0.7 to 10 bar, up to 3 pressure levels per test
• Quick test, 6 fixed test programmes, 50 freely parameterisable test programmes, WiCoTRACE programmes
• Measuring time automatic and adjustable 20 to 600 s
• Result memory for 100 measurements
• LeakFinder function for locating leaks

Waterproof tester Previous product1/2Next product

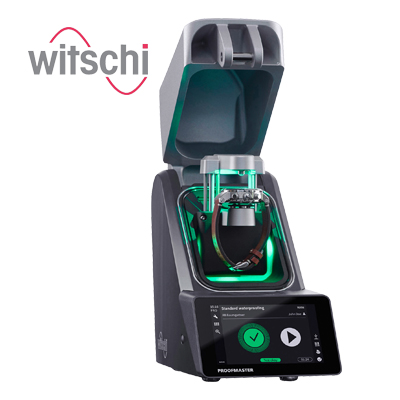

Witschi ProofMaster PRO

The new generation ProofMaster is more compact, faster, more accurate than before. The latest technology and smart algorithms and the simplest operation characterize this device. It impresses thanks to rapid, reliable seal testing, small space requirements, optimal protection of watches against scratching and its ergonomic design. Ideal for watchmakers, service centres or production. The ProofMaster can be used as a stand-alone device or in combination with a PC and WiCoTRACE software.

A compressor (Silverline L-S50-4, Art.-No. 609441) is required to operate the unit.

Features:
• Testing with up to 3 test pressures from -0.8 to 10 bar
• Intuitive operation via 5" touchscreen
• New algorithm for faster evaluation
• Lowerable watch rest - Scratch-Protect
• Improved measurement accuracy thanks to increased resolution and stability of deformation measurement
• Fully automatic sensor actuation, as well as closure and locking of the test chamber
• Improved protection against mechanical faults due to shock and vibration detection
• 6 permanently stored test programs

Specifications:
max. vacuum: 80%
max. gauge pressure: 10 bar
measuring range: -0.5 to 1.2 mm
display of deformation: 0,01 µm
measuring range variable: 10 - max. 300 s
Power supply: 230 V / 50 hz
Dimensions (W x D x H): 149 x 243 x 305 mm
Weight: 5.800 g

WITSCHI 31.24PK2
