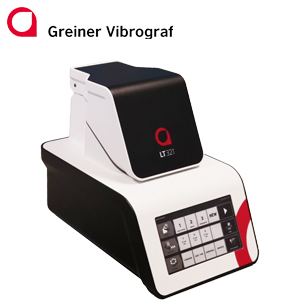

Greiner Vibrograph Poseidon LT-121

The waterproof tester “Poseidon” is a testing device for waterproof testing in positive and negative pressure without water. It is a high-precision testing device that checks the waterproofness of watches up to 100 m water depth or up to 8000 m above sea level. It is based on the proven air pressure method without the use of water and this with a negative pressure of up to minus 0.8 bar and a positive pressure of up to 10 bar.

The operation of the unit is very simple. The unit has 12 test programmes, 5 of which are permanently installed and a further 7 individually programmable.

The result appears automatically on the large, clear colour display. The display of the measured values is in digital form and as a graphic display.

Features:
• High-precision pressure sensor
• Automatic sensor positioning and opening of the bonnet
• Intuitive operation via 5" TFT touch display (800 x 480 pixels)
• Visual evaluation in real time
• Flexible programme parameters
• Ethernet / USB connections

Technical data:
Power: 30 watts
max. vacuum: 80%
max. overpressure: 10 bar
Measuring range: -0.3 to 1.0 mm
Display deformation: 0.0001 mm
Max. measurable deformation: 900 µm
Measuring range variable: 0 - max. 300 s
Mains voltage: 230 V / 50 hz
Dimensions (W x D x H): 210 x 260 x 260 mm
Weight: 3200 g
