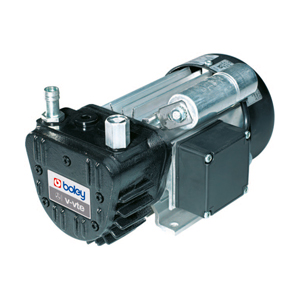

Pico V-VTE 10 vacuum pump

Dry-running slide-vane rotary vacuum pump for up to ten workstations. Extraction capacity up to 10.0/12.0 m³/h, max. end vacuum 150 mbar (abs.). Low-vibration, easily-installed, easy to
operate and maintain. With integrated extraction filter. Quiet in operation. Flexible connection possibilities.

Technical details:
Motor output: 370/440 watts
End pressure: 150 mbar (abs.)
Extraction capacity: 10.0/12.0 m³/h
Dimensions (L x B x H): 264 x 156 x 156 mm
Weight: 10300 g

Including:

• extraction side micro-filter
• vacuum regulator valve
• acoustic hood
• ejector silencer
• threaded reducer for 12 mm main pipe

• VTE10 Datenblatt
• VTE10 Betriebsanleitung
