Witschi WisioScope S

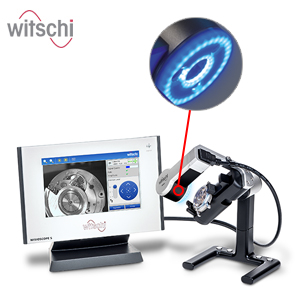

WisioScope S, the new measuring device which tests mechanical watches acoustically and optically — thanks to the latest-design WISIO microphone. Beat noises are measured acoustically and balance wheels optically. The technically-advanced WISIO microphone can simultaneously measure acoustically and optically.
•  Determination of real lift angle during combined measurement
•  Measurement possible even with ambient noise
•  Measurement of watches with special escapements possible
•  Amplitude measurement carried out irrespective of lift angle

WisioScope S does not need a computer for measuring with a laser. Compact and space-saving, this device with its WISIO microphone covers all mechanical watch testing possibilities.
You don't know the lift angle? No problem. During combined measurement, i.e. acoustic and optical, you can accurately determine the real lift angle.
With the WisioScope S, you can also test watch movements with special escapements. If a watch movement has a very weak escapement noise, you can now measure it without any problems.

Display mode: Numeric ,Graph, Vario, Trace, Sequence, Scope and Twinscope

Technical details:
Display: 7" TFT colour display with touch screen (800 x 480 pixel)
System requirements: Windows Embedded
Languages: German / French / English / Spanish / Italian / Chinese traditional / Chinese simplified / Russian
Interfaces: 2x USB type A / USB type B / Ethernet / UART RS232 / DIN 6-pin / "Wisio" microphone
Ambient measurements (W x H x D): 225 x 191 x 85 mm
Weight: 3200 g
