Gravotech M20 V3

graving machine Previous product1/9Next product

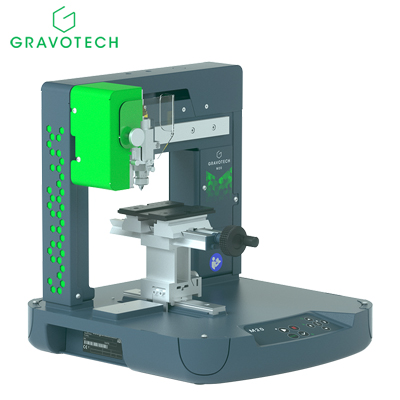

Gravograph M20 V3 Standard Engraving Machine

The new compact M20 V3 engraving machine is the ideal solution for jewelry, engraving plates and personalization. Thanks to the modular design, the engraving machine can be adapted to your needs. More power through increased engine power with improved stability and ergonomics, ensuring optimal engraving results.

Characteristics:
• Modular construction, which can be extended at any time
• More volume: Z axis up to 100 mm (even large objects can now be engraved)
• Self-centering vise
• Automatic Z positioning
• Point & shoot simple engraving positioning by laser pointer
• Gravure simulation by laser pointer
• Illuminated work area
• Interface: USB and Bluetooth
• Tablet option
• Diamond or milling engraving
• Large selection of engraving tools

Technical specifications:
Engraving area: 100 x 100 x 30 mm (x / y / z)
Max. Object size: 180 x 110 x 100 mm
Speed: 35 mm / s
Tool holder: 4.36 mm (now also compatible with TwinCut milling cutters with a larger selection of tools)
Dimensions (W x D x H): 345 x 370 x 380 mm
Weight: 12 Kg

Scope of supply:

Gravograph M20V3 standard engraving machine, flat engraving module, diamond for flat engraving.

Attention: Software and accessories are not included in the scope of delivery!

namegraving machine

manufactureGravotech

typeM20 Standard

VersionFlat engraving

item No.689070
