Lindström 80 Series

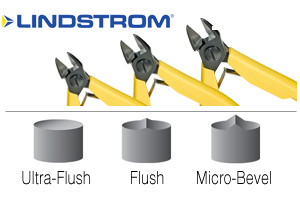

Cutting forms:
• Micro-Bevel (with bevel)
• Flush (small bevel)
• Ultra-Flush (without bevel)

Diagonal cutter Previous product9/12Next product

Diagonal Cutter - Lindström 8154

High-quality diagonal cutter with tapared head and high-alloy ball bearing steel for extremely long service life. Finest processing, cutting and head are computer-ground. Tighs with yellow plastic cover and double leaf spring.

Properties:
• ESD safe mono-material handles with return spring
• The cutting capacity given is for copper wire
• High performance alloyed steel / Burnished finish
• Numerically controlled machine grinding guarantees edge angle accuracy & contact, increases the tools reliability & consistency
• Precision induction hardened edges 63-65 HRC
• Screw joint that minimizes friction & maximizes alignment of cutting edges

Version: with small bevel (Flush)
Capacity: 0.20 - 1.60 mm (copper wire)
Cutting: 63-65 HRC
Thigh: anodized handles (ESD)
Dimensions (B x C x D x F): 13 x 12,5 x 6 x 1,2 mm
Length: 112.5 mm
Weight: 49 g

nameDiagonal cutter

modelLindström 8154

VersionFlush

capacity0.20-1.60 mm

length112 mm

item No.517318
