Dinkel K65

double combi rolling mill

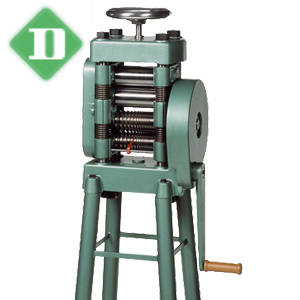

Dinkel K65 double rolling mill

High quality rolling mill "made in Germany" impresses with the following features:
- solid, space-saving machine design with sheet and wire rollers arranged one above the other
- stable, non-bending upper and lower bars with adjusting gearwheels protectively installed
- self-lubricating, maintenance-free bearings
- non-slip, easily-operated handwheels with polished rim
- large roller opening for reliable rolling of thick material as well
- carefully manufactured rollers of cold-rolled steel with good depth of hardness and surface
quality
- large, stable reduction gearing for ease of operation
- optimally-designed square wire grooves to ensure bur-free wire rolling.

Technical data top roller (metal plate):
Roller width: 130 mm
Roller Ø: 64 mm
Sheet thickness: from 5 mm
Sheet width: max. 130 mm
Reduction ratio: 6,5:1

Technical data bottom roller (wire):
Roller width: 130 mm
Roller Ø: 64 mm
Square wire thickness: 1 - 8 mm
Wire grooves: 19
Reduction ratio: 6,5:1

Dimensions (without stand) (L x W x H): 400 x 400 x 550mm
Dimensions (incl. stand) (L x W x H): 400 x 400 x 1450mm
Weight: 110 kg

*** Delivery includes tube stand ***

namedouble combi rolling mill

VersionSheet material / Wire

Rolling mill width2x​130mm

manufactureDinkel

modelK65

item No.605080
