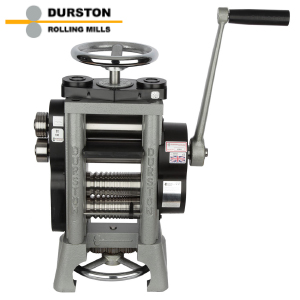

Durston Double D2-130 rolling mill

Best-selling rolling mill, extremely popular due to its divided roller pairs for sheets and wire and the large reduction gearing. Separate centring can be arranged for each pair of rollers. Thismachine is also optionally available with a cabinet stand. Sold with "D" grooves as standard for half-round profiles (4-3-2-1.5 mm)

Technical data top roller (metal plate):
Roller width: 130 mm
Roller Ø: 60 mm
Plate thickness: 0.15 - 6 mm
Plate width: max. 130 mm
Reduction ratio: 7:1
Semicircular profiles: 4 - 3 - 2 - 1.5 mm

Technical data bottom roller (wire):
Roller width: 130 mm
Roller Ø: 60 mm
Square wire thicknesses: 1 - 10 mm
Wire grooves: 19
Reduction ratio: 3,5:1

Dimensions (without handle) (L x B x H): 420 x 420 x 565 mm
Weight 70 kg

• Technical data sheet
