Dinkel K65 E

engine combi rolling mill

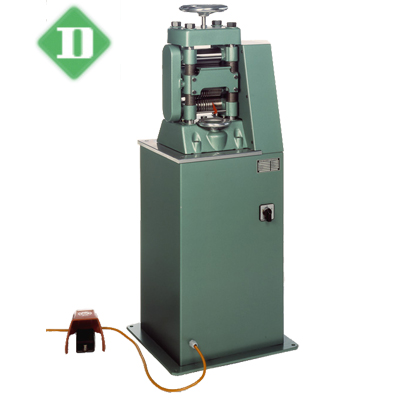

Dinkel K65 E electric double rolling mill

High quality rolling mill "made in Germany", characterised by the following features:
- solid, space-saving machine design with sheet- and wire-rollers one above the other
- stable, defelction-resistant upper and lower spars with protected built-in adjusting gear-wheels
- self-lubricating, maintenance-free bearings
- non-slip, easy to operate handwheels of aluminium with polished rim
- large roller openings to ensure safe rolling of thicker material
- carefully manufactured rollers of cold-rolled steel with hardness in depth and quality surface
- large, stable step-down gearing for easy operation
- optimum design for the square wire grooves for bur-free rolling of wire.

The high-torque motor ensures trouble-free and quick work. The rollers are set in maintenance-
free sliding bearings. Equipped with run-in and run-out tables, safety foot-switch and reversing
switch for forwards and reverse rolling. Special painting in any RAL colour at an extra charge.

Technical data top roller (sheet metal):
Roller width: 130 mm
Roller Ø: 64 mm
Sheet thickness: from 5 mm
Sheet width: max. 130 mm
Rolling speed (sheet): 5.5 m/min.

Technical data bottom roller (wire):
Roller width: 130 mm
Roller Ø: 64 mm
Square wire thickness: 1 - 8 mm
Wire grooves: 19
Rolling speed (wire): 8 m/min.

Drive: worm-gear brake motor 1.5 kW (AC)

Connection: 400 V, 50Hz three-phase current

Dimensions (L x B x H): 550 x 500 x 1400 mm
Weight: 185kg

*** Delivery including machine stands ***

nameengine combi rolling mill

VersionSheet material / Wire

Rolling mill width2x​130mm

manufactureDinkel

modelK65E

item No.605085
