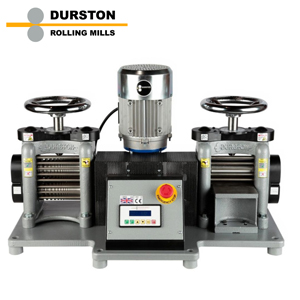

Powered combination double rolling mill TUI-130

The powered combination double rolling machine TUI-130 has an infinitely variable motor speed, digital control, forward and reverse motion. The Durston rolling machine is ideally suited to the needs of workshops, design studios and smaller manufacturing companies.

Technical data:
Roll width: 2x 130 mm
Roller Ø: 65 mm
Sheet thickness: max. 6 mm
Sheet width: max. 80 mm
Side Extensions: 8, 6, 4, 3, 2 & 1.5mm
Number of grooves: 19
Wire thickness: max. 10 mm
Rolling speed : 5 to 20 rpm.
Running direction: forward and backward motion
Safety: EMERGENCY OFF switch on the front panel
Engine power: 1100 Watt
Connection: 220 V, 50Hz
Dimensions (L x W x H): 830 x 390 x 540mm
Weight: 160 kg
