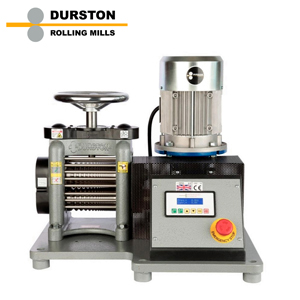

Powered combination rolling mill TUI-C130
The powered combination rolling mill TUI-C130 has an infinitely variable motor speed, digital control, forward and reverse motion. The Durston rolling machine is ideally suited to the needs of workshops, design studios and smaller manufacturing companies.
Technical data:
Roll width: 130 mm
Roller Ø: 65 mm
Sheet thickness: max. 6 mm
Sheet width: max. 80 mm
Side Extensions: 4, 3, 2 & 1.5mm
Number of grooves: 11
Wire thickness: max. 8 mm
Rolling speed : 5 to 20 rpm.
Running direction: forward and backward motion
Safety: EMERGENCY OFF switch on the front panel
Engine power: 1100 Watt
Connection: 220 V, 50Hz
Dimensions (L x W x H): 500 x 390 x 540mm
Weight: 110 kg
nameengine combi rolling mill
VersionSheet material / Wire
Rolling mill width130mm
manufactureDurston
modelTUI-C130
item No.605090
