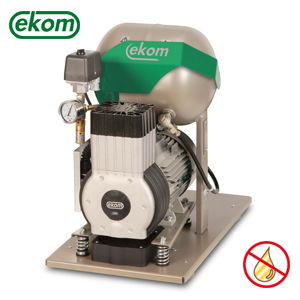

Compressor “EKOM DK50-10Z”

The oil-less compressor EKOM the latest series ensures a powerful, clean and quiet compressed air supply for demanding applications. The compressor is designed for continuous operation and produces at 10 bar pressure 50 liters/min.. The volume in operation (during pressure build-up) is about 64 dB, so it should be used in a separate room or in combination with a sound absorbing box. The maximum pressure is 12 bar, making it particularly suitable for use in conjunction with waterproof testing units using the overpressure method with or without water.

Oil-free technology and low-maintenance components make the EKOM compressors the best and first choice for your service workshop.

Scope of delivery:
• Compressor EKOM DK50-10Z

Specifications:
Max pressure: 10-12 bar
Power: 50 l/min. (at 10 bar)
Tank capacity: 10 liters
Motor power: 0.55 kW
Dimensions (L x W x H): 485 x 350 x 555 mm
Weight: 38 kg
Mains power supply: 230V ~ 50Hz

show manufcturer info

• Operating instructions EKOM
