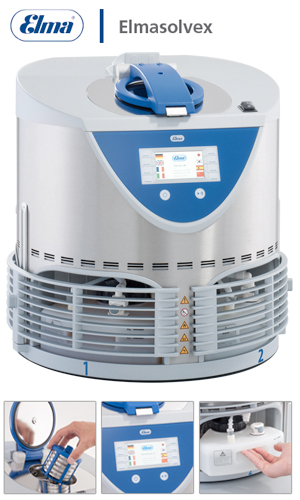

Elmasolvex VA

Single-chamber ultrasonic vacuum technology for cleaning with solvents. TÜV-certified safety due to intrinsic Ex-protection.

The new standard for the use of flammable solvents in watch movement cleaning:
• Ex-certified solvent-based cleaning of watch movements (TÜV Rheinland)
• Protection against solvent vapours and odours using extraction or self-contained filter system
• Vacuum technology also reaches difficult-to-access places and removes gas bubbles from the movements
• Cleaning and rinsing using multi-frequency ultrasound in rotation or oscillation process
• Machine can be completely rotated, media containers and connections are very easily accessible
• Media containers are easy to replace and rinse out. Integrated particle filter for increasing the service life of the cleaning and rinsing solutions
• Wide range of practical accessories; see accessories catalogue

Ultrasonic and vacuum technology guarantees:
• maximum cleanliness due to removal of interfering gas bubbles
• explosion safety due to the Ex-protection measures integrated in the machine

Process:
Ultrasonic / vaccum process for solvents in the rotation or oscillation process

Solvent cleaning:
Ex-certified for flammable solvents with flashpoints > 12°C e.g. Bontech R and S or Elma wf and Elma suprol

Scope of delivery:
1x Elmasolvex VA watch cleaning unit
1x Elma basket mounting for 80mm baskets
4x media tanks, each 2,5 Litres with suction filter
4x spare suction filters
2x exhaust air tubes (5m) with coupling
*** The cleaning baskets must be ordered separately ***

Specifications:
Volume Media containersr: 4x 2,5 Liter
Cleaning basket diameter: 64mm / 80mm
Exhaust air connection: DN 6mm (Aktiv)
Power consumption: 220 Watts
Dimensions (Ø x H): 600 x 610 mm
Weight: 39 kg
