Gears-wheel and pinion cutting machine - Bergeon

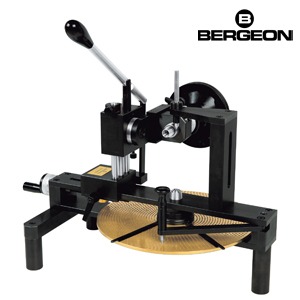

High quality and precision milling machine for cutting gears and pinions. Robust construction with ball bearing vertical slide-way, horizontal micrometer adjustment, and large dividing plate.

Technical Details:
Max. wheel diameter: 120 mm
Max. pinon diameter: 50 mm
Dividing plate: Ø 275 mm
Plate with 22 series of holes: 58 - 59 - 70 - 74 - 75 - 76 - 78 - 80 - 84 - 90 - 92 - 96 - 100 - 102 - 108 - 112 - 114 - 120 - 124 - 128 - 132 - 144
Vertical run: 50 mm (by lever)
Horizontal run: 100 mm (by micrometer screw)
Slide-rest inclinable: -20° to +20°
Drive roller: Ø 120 mm
Dimensions (W x D x H): 500 x 300 x 650 mm
Weight: 14 kg

Scope of delivery:
• 1 folder for cutters Ø 10 mm
• 3 pairs of wheel holders Ø 30 - 40 - 50 mm
• 4 intermediate supports 2 - 4 - 6 - 8 mm
• 1 American chuck sw 12, Ø 8 mm
• 1 tailstock centre
• 1 instruction manual

Bergeon No. 6580-2000

The motor and the cutters are not included in the delivery.
