TRS-clamping system
clamping system
TRS clamping system
The TRS clamping system for wedding rings, costume rings and watch cases guarantees optimum clamping accuracy without time-wasting adjustment. Difficult tasks as well, like clamping shallow shoulders or thin-walled workpieces are accomplished quickly and reliably with the TRS-clamping system. The clamping system can also be used for machining the outer contours of rotationally symmetrical workpieces on both conventional and CNC lathes and
milling machinery.

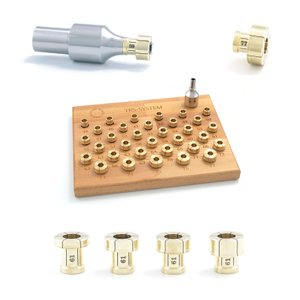

Made up of:
1 1 mandrel in special steel
33 attachments, sizes Nos. 45 - 77 (width 1 – 10 mm)
1 varnished beechwood board with clear lettering
* Further sizes up to No. 97 are available on request *
Technical details:
Dimensions (L x B x H): 300 x 235 x 55 mm
Weight: 2300 g
Please indicate the type of lathe so that we can adapt the cone of the mandrel to your lathe.
The TRS clamping system for wedding rings, costume rings and watch cases guarantees optimum clamping accuracy without time-wasting adjustment. Difficult tasks as well, like clamping shallow shoulders or thin-walled workpieces are accomplished quickly and reliably with the TRS-clamping system. The clamping system can also be used for machining the outer contours of rotationally symmetrical workpieces on both conventional and CNC lathes and
milling machinery.
Made up of:
1 1 mandrel in special steel
33 attachments, sizes Nos. 45 - 77 (width 1 – 10 mm)
1 varnished beechwood board with clear lettering
* Further sizes up to No. 97 are available on request *
Technical details:
Dimensions (L x B x H): 300 x 235 x 55 mm
Weight: 2300 g
Please indicate the type of lathe so that we can adapt the cone of the mandrel to your lathe.
nameclamping system
Versionfor wedding rings and + watch cases
contentsmandrel + 33 fittings
item No.683390
