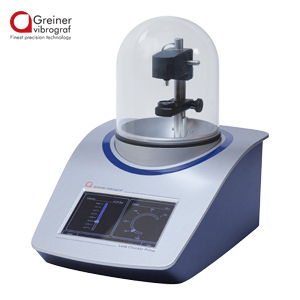

Vacuum testing unit Leak-Checker Prime
The new Leak Checker Prime is the perfect mix of technology and good design. This vaccum tester up to -0,7 bar combines Swiss precision made by Greiner with simple operation using a touch-screen and a brilliant display on high-resolution color screen. It is the first vacuum testing unit of the world, which measures the deformation of the watch case to the nanometer scale (1/10.000mm) and thus provides the watchmaker the necessary readings in order to test even hard and small ceramic watches, which could previously tested in vacuum with little or no result. The unit needs no additional, expensive compressor.
Key features:
- Suitable for all watch types including hard and small ceramic watches
- With accurate, robust pressure sensor
- Vacuum created by an internal pump
- Vacuum can be freely selected and programmed in steps of 0.1 bar up to -0.7 bar
- Testing time can be freely selected and programmed up to 300sec
- Intuitive user interface, with results displayed on a colour 5” TFT capacitive touchscreen (800 x 480 pixels)
- Instant printout of results with Martel thermal printer, with printout also possible via LAN and USB
- Enables connection to a network via Ethernet and USB
Technical specifications:
Dimmensions (L x W x H): 250 x 200 x 255 mm
Weight: 3200 g
The new Leak Checker Prime is the perfect mix of technology and good design. This vaccum tester up to -0,7 bar combines Swiss precision made by Greiner with simple operation using a touch-screen and a brilliant display on high-resolution color screen. It is the first vacuum testing unit of the world, which measures the deformation of the watch case to the nanometer scale (1/10.000mm) and thus provides the watchmaker the necessary readings in order to test even hard and small ceramic watches, which could previously tested in vacuum with little or no result. The unit needs no additional, expensive compressor.
Key features:
- Suitable for all watch types including hard and small ceramic watches
- With accurate, robust pressure sensor
- Vacuum created by an internal pump
- Vacuum can be freely selected and programmed in steps of 0.1 bar up to -0.7 bar
- Testing time can be freely selected and programmed up to 300sec
- Intuitive user interface, with results displayed on a colour 5” TFT capacitive touchscreen (800 x 480 pixels)
- Instant printout of results with Martel thermal printer, with printout also possible via LAN and USB
- Enables connection to a network via Ethernet and USB
Technical specifications:
Dimmensions (L x W x H): 250 x 200 x 255 mm
Weight: 3200 g
nameleak tester
modelLeak Checker Prime
manufactureGreiner
item No.609433
