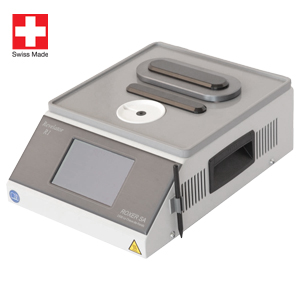

Roxer Revelator R1
Condensation test device
Condensation test device Roxer Revelator R1
The Revelator R1 is a fully electronic tester with integrated heating plate which allows to determine the condensation level in the watch immediately. It replaces the present drop test. The 20 pre-defined test programs allow to determine the content of the condensate of different watch types. The user-friendly touch screen ensures easy handling and operation.
In contrast to the drop test, the tester sets the watch to a frozen state of shock, in which the temperature is maintained uniformly in some time.
Features:
- Condensation test of watches with a glass thickness of up to 5mm (in which the drop test does not strike)
- Cooling mode adjustable from 4° to 18° C
- Heating plate of 40° to 55° C adjustable
- Touch screen with graphical illustration and temperature display
Specifications:
Power: 50 watt
Dim. (L x W x H): 220 x 310 x 115 mm
Weight: 4.500 g
The Revelator R1 is a fully electronic tester with integrated heating plate which allows to determine the condensation level in the watch immediately. It replaces the present drop test. The 20 pre-defined test programs allow to determine the content of the condensate of different watch types. The user-friendly touch screen ensures easy handling and operation.
In contrast to the drop test, the tester sets the watch to a frozen state of shock, in which the temperature is maintained uniformly in some time.
Features:
- Condensation test of watches with a glass thickness of up to 5mm (in which the drop test does not strike)
- Cooling mode adjustable from 4° to 18° C
- Heating plate of 40° to 55° C adjustable
- Touch screen with graphical illustration and temperature display
Specifications:
Power: 50 watt
Dim. (L x W x H): 220 x 310 x 115 mm
Weight: 4.500 g
nameCondensation test device
VersionTouchscreen
additionIntegrated heating plate
manufactureRoxer
typeRevelator R1
item No.611296
