ultrasonic unit

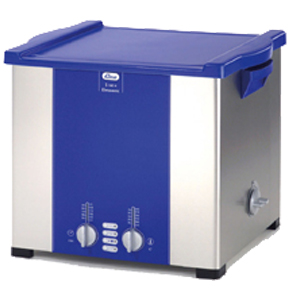

Elmasonic S180H - with heating

Elmasonic S ultrasonic units are available in various unit sizes and different tank volumes. Microprocessor controlled ultrasonic cleaning with sweep technology signify the state of the art. The user-friendly LED display ensures ease of use.

Main features:
- high-performance transducer system with 37 kHz.
- cleaning tank made of cavitation-resistant stainless steel
- easy-to-use and clear control unit, perfectly sealed so that no liquid can penetrate into the electronics.
- LED-display with ultrasonic functions
- turning knob for the pre-selection of the cleaning period
- Continous operation or short-time operation between 1 to 30 minutes
- the cleaning process can be switched on by hand or automatically (temperature-controlled)
- the optional sweep function guarantees an optimum sound field distribution in the cleaning bath due to a modulation of the frequencies.
- the degas function allows a quicker degassing of the cleaning liquid.
- time-controlled "Autodegas" for the efficient degassing of freshly mixed cleaning liquids.
- dry run proof heating
- the heating process can be switched by a turning knob from 30° to 80°C in steps of 5° degrees.
- LED display for setpoint and actual value of the liquid temperature
- the turning knob on the side allows an easy draining of the cleaning liquid through the drain duct on the back of th unit.
- carrying handles are made of ergonomically shaped plastic.

Tank lid is not included in delivery!

Specifications:
Tank volume: 18 litres
Tank internal dimensions (W x D x H): 327 x 300 x 200 mm
Ultrasonic peak power: 800 watts
Heating power: 800 watts
Material: housing and tank made of stainless steel
Unit external dimensions (W x D x H): 390 x 340 x 321 mm
Drain duct: 3/8''
Weight: 8500 g
