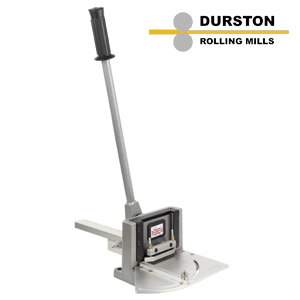

DURSTON Guillotine Shear
The new patent-pending guillotine shear from Durston, are the first of their kind. A new improved backstop and square drive system set these lever plate shears apart from the crowd.
Features:
• New patent pending cutting guide
• Cuts larger sheet material at greater angles
• Improved 6 inch backstop with bearing guide
• No movement, for precise cutting
• Square drive system for maximum torque
• Cuts angles up to 60° in 5° increments
• Precision ground, hardened and tempered cutting blade
• Blade with four cutting edges
• Cast iron body
Technical data:
Blade length: 105mm
Cutting angles: up to 60° in steps of 5
Cutting wide sheets: at an angle of 45°
Flat steel: max. 1.5mm
Dimensions (W x D x H): 170 x 220 x 130 mm (without lever)
Weight: 12 kg.
nameGuillotine shear
Messerlänge105mm
Winkelschnittup to 60°
Blechlängemax. 306mm
item No.517114
