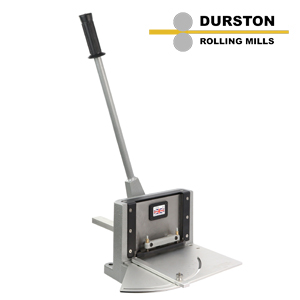

DURSTON Guillotine Shear

The new patent-pending guillotine shear from Durston, are the first of their kind. A new improved backstop and square drive system set these lever plate shears apart from the crowd.

Features:
• New patent pending cutting guide
• Cuts larger sheet material at greater angles
• Improved 6 inch backstop with bearing guide
• No movement, for precise cutting
• Square drive system for maximum torque
• Cuts angles up to 60° in 5° increments
• Precision ground, hardened and tempered cutting blade
• Blade with four cutting edges
• Cast iron body

Technical data:
Blade length: 155mm
Cutting angles: up to 60° in steps of 5
Cutting wide sheets: at an angle of 45°
Flat steel: max. 1.5mm

Dimensions (W x D x H): 220 x 270 x 200 mm (without lever)
Weight: 17 kg.
