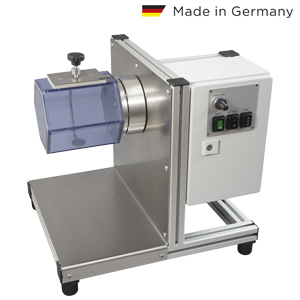

Polishing and grinding drum UT 3

Compact small polishing drum made of aluminium profile with stainless steel cover plates for polishing and grinding jewellery, plates and clock wheels. The parts to be machined are degreased, deburred, rounded, ground and smoothed. When using polishing bodies made of stainless steel, the surface is compacted and thus polished to a shiny finish. For grinding, ceramic chips are used which have a material-removing effect but should not be used in the same drum.

Process principle: Slow and gentle, through long machining with low intensity, this is the most ideal machining process. The resulting contact pressure causes the grinding or polishing effect.

Filling quantity grinding wheels: 3 kg
Filling quantity polishing body: 7 kg

Technical data:
Tank volume: 3.0 litres
Container dimensions: 160 x 180 mm
Drum opening: 60 x 100 mm
Speed: 500 - 3,600 rpm
Control: right/left rotation
Control unit: 200 Watt
Mains operation: 230V ~ 50Hz
Dimensions (W x D x H): 510 x 450 x 490 mm
weight: 25,5 kg
