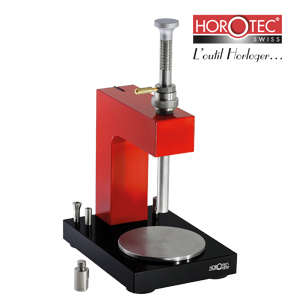

Universal press “correction tool” - Horotec

Versatile multifunctional press for drilling, milling, tapping, deburring, reaming. Large selection of collets type P 4.5 are available, fitting for the brooch with internal thread. The brooch has a height stop, as well as height compensation with fine thread. The large, ergonomically shaped rotary knob and the knurled profile ensure optimum feel and precise control over your work. A large round work plate Ø 60mm, serves to hold movement or case holders. By inserting the threaded endpiece, all pressure pieces with M6 thread can be fixed.

Application areas:
• Milling dial feets
• Drilling of work pieces, beads etc.
• Milling and deburring of holes
• Thread recutting
etc.

Scope of delivery:
• 1x Universal press
• 1x Brooch with internal thread for holding collets
• 1x Compensating ring with height stop and fine thread
• 1x Insert with 1° angle (for e.g. roller countersinks)
• 1x Insert with 2° angle (for e.g. pivot cutters, reamers etc.)
• 1x Collet type P 4.5 Ø 3.00 mm
• 1x Adapter with thread M6
• 1x Allen key
• 1x Support table Ø 60mm

Technical data:
Dimensions (W x D x H): 80 x 110 x 170mm
Weight: 855g
