Elmadry TD

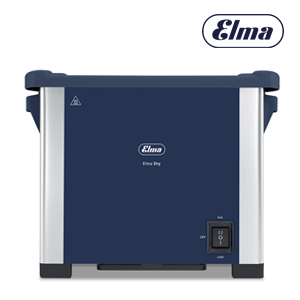

Hot air and cold air drying units - Elmadry TD
To dry the parts again after immersion or ultrasonic baths or rinsing, drying units from the Elmadry TD series are available for drying with cold or hot air.
drying device Previous product1/3Next product
Elmadry - warm air and cold air - drying units
lmadry drying units for use in the production, workshop and service. After ultrasonic cleaning, the parts are first rinsed in the basket with municipal water and then dipped into a bath of deionized or distilled water (needed for spotless drying).
The basket with the cleaned parts in then placed conveniently placed in the Elmadry TD drying unit. The hot air function is activated while the cover is on. The cover has ventilation slots, ensuring that maximum air turbulence is produced and the moist air is conducted to the outside.
At the same time, the cover reduces energy consumption. The dust filter on the underside is replaceable and prevents re-soilng of the cleaned parts by the dust in the room air.
Technical data:
Tank labour capacity: 1,9 liter
Heating power: 460 Watt
Temperature: max. 70°C
Unit external dimensions (W x D x H): 260 x 175 x 215 mm
Tank internal dimensions (W x D x H): 240 x 140 x 100 mm
Basket loading: max. 1,0 kg
Basket internal dimensions (W x D x H): 216 x 106 x 48 mm
Weight: 3600g
The basket is not included!
Suitable basket:
1x Type 30 No. 691405
namedrying device
VersionHot-/Cold
output500 Watts
tank size240x140x100 mm
typeElmadry TD30
item No.691365
