Elmadry TD
Hot air and cold air drying units - Elmadry TD
To dry the parts again after immersion or ultrasonic baths or rinsing, drying units from the Elmadry TD series are available for drying with cold or hot air.
drying device Previous product2/3Next product

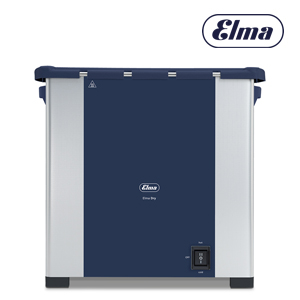

Elmadry - warm air and cold air - drying units
Elmadry drying units for use in the production, workshop and service. After ultrasonic cleaning, the parts are first rinsed in the basket with municipal water and then dipped into a bath of deionized or distilled water (needed for spotless drying).
The basket with the cleaned parts in then placed conveniently placed in the Elmadry TD drying unit. The hot air function is activated while the cover is on. The cover has ventilation slots, ensuring that maximum air turbulence is produced and the moist air is conducted to the outside.
At the same time, the cover reduces energy consumption. The dust filter on the underside is replaceable and prevents re-soilng of the cleaned parts by the dust in the room air.
Technical data:
Tank labour capacity: 9,0 liter
Heating power: 530 Watt
Temperature: max. 70°C
Unit external dimensions (W x D x H): 340 x 285 x 320 mm
Tank internal dimensions (W x D x H): 300 x 240 x 195 mm
Basket loading: max. 1,0 kg
Basket internal dimensions (W x D x H): 276 x 126 x 76 mm
Weight: 6100g
The basket is not included!
Suitable basket:
2x Type 30 No. 691405
2x Type 40 No. 691465
1x Type 100 No. 691485
1x Type 120 No. 691505
namedrying device
VersionHot-/Cold
output570 watt
tank size300x240x197 mm
typeElmadry TD120
item No.691366
