Basic Quattro IS
• Microblasting – economic and versatile
• Abrasive chamber volume: 20 l
• Excellent illumination of the blasting chamber with LED technology
• Professional fine sandblasting unit with 2-4 blasting tanks
• „IS“ (= Immediate Stop) technology for controlled sandblasting
sandblaster

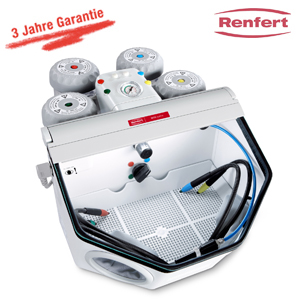

Basic quattro IS
Compact sandblaster of modular design permitting the fitting of up to four blasting tanks. Furthermore, the unit has an integrated instant stop mechanism (IS = immediate stop). This system regulates start and stop of the blasting process within bare fractions of a second. Two blaster modules which enable the use of 25-70 µm and 70-250 µm abrasives.
Special features:
- patented special mixing chambers for an even flow of abrasive
- modular attachment of up to four blasting tanks possible
- highly resistant large sight-glass with special coating for increased service life
- well-lit blasting chamber having the usual illumination installed
- handstulpen gauntlets replaceable and washable
- ventilation slits for optimum ventilation
- pressure indication via manometer
- tank selector switch and pressure regulator inside the blasting chamber
- removable, stable floor-grid
Technical details:
Abrasives tanks: (1 x 25-70 µm and 1 x 70-250 µm)
Capacity tanks: each 1000 ml
Working pressure: 1-6 bar
Connection pressure: 6-10 bar
Air consumption: 120 l/min (at 6 bar)
Internal illumination: 11 W
Sound level: max. 72 dB
Dimensions (L x B x H): 560 x 430 x 310 mm (for four-tank version)
Weight: 12 kg
Mains operation: 230 V~ 50/60 Hz
Compact sandblaster of modular design permitting the fitting of up to four blasting tanks. Furthermore, the unit has an integrated instant stop mechanism (IS = immediate stop). This system regulates start and stop of the blasting process within bare fractions of a second. Two blaster modules which enable the use of 25-70 µm and 70-250 µm abrasives.
Special features:
- patented special mixing chambers for an even flow of abrasive
- modular attachment of up to four blasting tanks possible
- highly resistant large sight-glass with special coating for increased service life
- well-lit blasting chamber having the usual illumination installed
- handstulpen gauntlets replaceable and washable
- ventilation slits for optimum ventilation
- pressure indication via manometer
- tank selector switch and pressure regulator inside the blasting chamber
- removable, stable floor-grid
Technical details:
Abrasives tanks: (1 x 25-70 µm and 1 x 70-250 µm)
Capacity tanks: each 1000 ml
Working pressure: 1-6 bar
Connection pressure: 6-10 bar
Air consumption: 120 l/min (at 6 bar)
Internal illumination: 11 W
Sound level: max. 72 dB
Dimensions (L x B x H): 560 x 430 x 310 mm (for four-tank version)
Weight: 12 kg
Mains operation: 230 V~ 50/60 Hz
namesandblaster
Version2 steel tanks
modelBasic Quattro IS
manufactureRenfert
item No.694120
