Basic mobile
• Ideal use with existing abrasive chamber
• Control using pneumatic foot switch
• Individual blasting pressure of 1–6 bar
• Pressure display via manometer
sandblaster
Basic Mobil

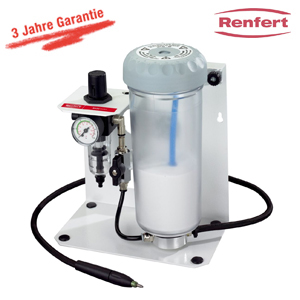

In the Basic Mobil sandblaster, the blasting technology has been reduced to a basic framework. This means
that mobile use of the unit now only depends on a compressed air connection. No electrical connection is
now needed. Using different versions of the blaster module, abrasives of sizes between 50 and 250 µm can
be used. Ideal for use where there is a blasting chamber already available.
Special features:
- patented special mixing chambers for an even flow of abrasive
- pressure indication by manometer
- integrated water separator
- manual pneumatic shut-off valve for starting and topping
- control by means of pneumatic foot-switch
- connection possible to Vario-Jet
Technical details:
Abrasive tanks: to choice with 50 or 90-250µm (must be stated when ordering)
Capacity tanks: each 1000 ml
Working pressure: 1-6 bar
Connection pressure: 6-10 bar
Air consumption: 120 l/min (at 6 bar)
Sound level: max. 70 dB
Dimensions (L x B x H): 130 x 220 x 260 mm
Weight: 2500 g
In the Basic Mobil sandblaster, the blasting technology has been reduced to a basic framework. This means
that mobile use of the unit now only depends on a compressed air connection. No electrical connection is
now needed. Using different versions of the blaster module, abrasives of sizes between 50 and 250 µm can
be used. Ideal for use where there is a blasting chamber already available.
Special features:
- patented special mixing chambers for an even flow of abrasive
- pressure indication by manometer
- integrated water separator
- manual pneumatic shut-off valve for starting and topping
- control by means of pneumatic foot-switch
- connection possible to Vario-Jet
Technical details:
Abrasive tanks: to choice with 50 or 90-250µm (must be stated when ordering)
Capacity tanks: each 1000 ml
Working pressure: 1-6 bar
Connection pressure: 6-10 bar
Air consumption: 120 l/min (at 6 bar)
Sound level: max. 70 dB
Dimensions (L x B x H): 130 x 220 x 260 mm
Weight: 2500 g
namesandblaster
Version1 radiation tank
modelBasic Mobil
manufactureRenfert
item No.694098
