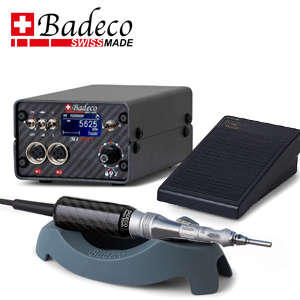

Micromotor Badeco M4-ASF Setter-Kit

The Badeco M4ASF micromotor is a handy top-class grinding, milling and polishing motor, which is impressive and account of its power and manoeur - ability - in continous as well. It guarantees extremely smooth and vibration-free running with extremely little noise. Two connections on the control unit provide even more flexibility.

Features:
• Powerful micromotor
• Torque 24.7 cNm
• Expandable to 2 handpieces
• Stepless speed control from 2.000 to 20.000 rpm
• Clockwise/anti-clockwise switch
• Negligible handpiece heating, even in continous operation
• Control by hand or foot as preferred
• Footcontrol with double function On/OfF or variable speed
• High concentricity (+/- 0,05mm)

Scope of delivery:
• Control unit M4-ASF2
• Micromotor RS2000
• Rivetting and setting mallet 318 Combi (normal and strong stroke)
• Reduction gear 4:1 (M4-RS400)
• Handpiecce holder
• Double function foot control

Specifications:
Dimensions (L x W x H): 180 x 110 x 77 mm
Weight: 2200 g

• BADECO user manual
