LS301
Oxhydrogen welder

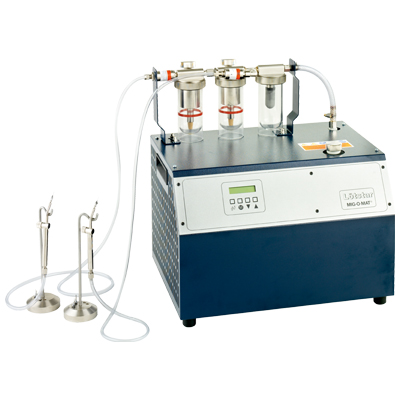

Migomat Lötstar 301 soldering unit complete
This gas soldering unit generates its own gas by electrolysis by splitting water into oxygen and hydrogen. High levels of energy are required for the purpose. The flame of Lötstar units develops a heat of up to 3200°C, without the addition of flux. Simple to dose the flame, and spot-accurate soldering.
Technical details:
Gas production: 300 l/h
Nozzle diameter: 0.5 – 1.8 mm
Dimensions: L 515 x B 375 x H 515
Weight: 49.5 kg
Output: 1800 watts
Scope of delivery:
• 1 soldering unit Mig-O-Mat
• 1 torch handpiece
• 5 torch nozzles assorted
• 1 handpiece holder
• 3 metres gas-hose
• 1 floating contents indicator
• 1 evaporator liquid (replaced methanol)
• 1 electrolyte filling
• 1 whisper cooling
• 1 small parts package
• electronic control of gas-feed, depending on the number of workstations
Optional:
* platinum welding set "695345"
* electronic contents sensor "695326"
nameOxhydrogen welder
typeLoetstar 301
gas production300 l/h
output1800 W
workstations1-8
item No.695356
