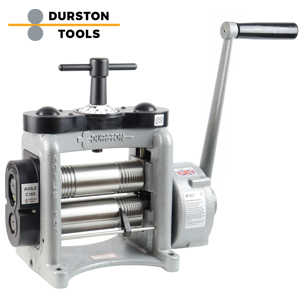

Combi Rolling Mill Durston Agile C165

Professional combination rolling mill that can be used for rolling both wire and sheet metal. It impresses with a roller width of 165mm, which is significantly wider than that of the competition. The roller is supplied with a reduction gear, which makes rolling sheet metal in particular much easier.

Properties:
• Main rolls induction-hardened and fully supported
• Self-lubricating and completely maintenance-free
• New T-bar adjustment on the top side
• Ultimate strength for a lifetime of use with professional results

Technical data:
Roller length: 165 mm
Roller Ø: 60 mm
Sheet thickness: max. 6 mm
Sheet width: max. 85 mm
Square wire thicknesses: 1.22 - 7.23 mm
Wire grooves: 11
Half-round profiles: 2 - 3 - 4 - 5 - 6 mm
Wire capacity: max. 7 mm
Reduction ratio: 5:1

Dimensions (W x D x H): 435 x 220 x 365 mm
Weight: 42.95 kg
