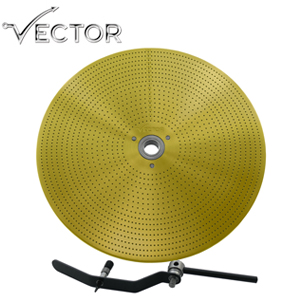

Dividing head - Vector
Made of brassl, with index classification, divider plate with 34 circular holes. For fixing to the headstock,
external Ø 158 mm, chuck Ø 10 mm (adjustable).
Circular holes on the front:
46 - 54 - 58 - 59 - 62 - 70 - 76 - 80 - 100 - 132 - 144 - 150 - 156 - 168 - 180 - 192 - 204
Circular holes on the back:
79 - 81 - 83 - 87 - 89 - 91 - 93 - 97 - 134 - 138 - 142 - 146 - 154 - 159 - 165 - 183 - 189
Delivery:
- Dividing head with recording
- Index pin
- Spring arm
Weight: 560 g
- More boltcircles and special versions on request -
namedivider
Version34 bolt circles
outside-Ø158 mm
seating Ø10 mm
manufactureVector
item No.685101
