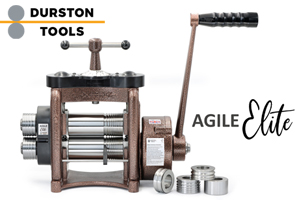

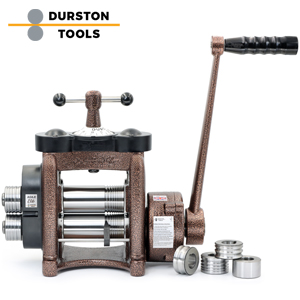

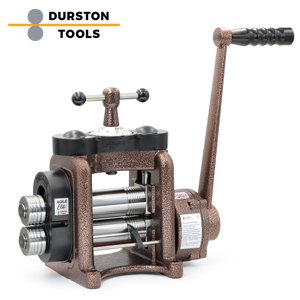

Premium Combi Rolling Mill Durston Agile Elite C110

The new Durston Agile Elite combi rolling mill impresses with its robust, smooth, powder-coated copper surface and offers extended functions. Professional combination rolling mill that can be used for rolling both wire and sheet metal. The roller is supplied with a reduction gear, which makes rolling sheet metal in particular much easier.

Properties:

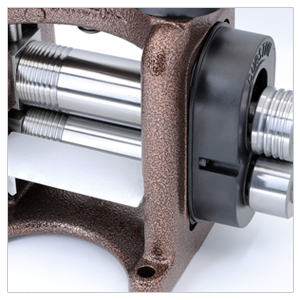

• Rollers induction-hardened and fully supported
• Self-lubricating and completely maintenance-free
• Enlarged surface of the flat rolling, ideal for rolling pattern plates
• New T-Bar adjustment at the top for easier and faster turning

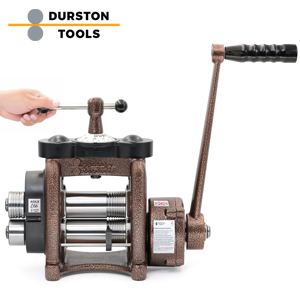

• Ergonomic, rotating handle for added comfort when rolling
• Rear drip tray, powder-coated white so you can see your parts clearly
• Ultimate strength for a lifetime of use with professional results
• Interchangeable extension rolls D-Shape
• Reduction gear for effortless rolling

Additionally included in the scope of delivery:

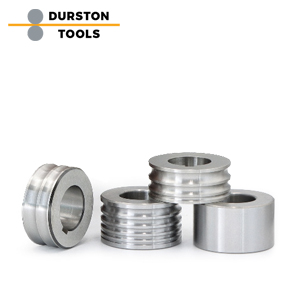

• Extension Roll D-Shape No. 1: 5 mm, 4 mm, 3 mm and 2 mm
• Extension Roll D-Shape No. 2: 8 mm, 6 mm and 3 mm
• Extension Roll D-Shape No. 3: 10 mm and 7 mm
• Wide Extension No. 4 + 5: 3 mm to 6 mm
• Flat Extension No. 6: flat surface
• 1 Pattern Plate
• Protective cover: protects against dust and dirt

Technical data:

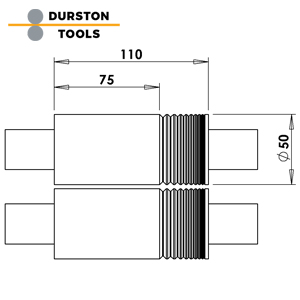

Roller width: 110 mm
Roller Ø: 50 mm
Sheet thickness: max. 5.5 mm
Sheet width: max. 75 mm
Square wire thicknesses: 1 - 5 mm
Wire grooves: 9
Half-round profiles: 9 + 4 (6 different profiles)
Wire thickness: max. 7 mm
Reduction ratio: 4:1

Dimensions (W x D x H): 345 x 200 x 320 mm
Weight: 26 kg
