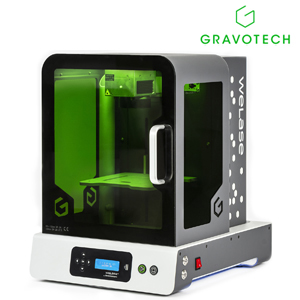

Gravograph WeLase – FIBER

Marking laser for all metals

Compact laser engraving machine specially designed for the retail sector for in-store or online personalisation. This marking laser is small, stylish and quiet with large viewing windows. It offers a great experience in your shop and creates a memorable moment for your customers when a gift item they have just purchased is instantly engraved. The “WeLase” meets strict global safety regulations and is a certified Class 1 system designed for use in public retail environments.

High-end technology made simple
Benefit from a user-friendly laser with cutting-edge technology that can be operated without any prior knowledge.

The WeLase features the following tools:
• high-speed marking head
• automatic Z-axis
• positioning assistants
• extensive accessory sets such as “Jeweller's Package” and "EasyFix Set (optional)
• customised software options

The engraving software “LaserStyle 9” is easy to operate via the graphical user interface on the PC and offers various functions for formatting text, graphics and images. The software is included in the scope of delivery and can be quickly learned in the course of a training seminar.

Fields of application:
• Names, initials, patterns, barcodes and serial numbers
• fingerprints, logos and photos
• flat and cylindrical workpieces
• internal and external engravings on rings, bangles and watch cases
• deep engravings

Safe and comfortable
The compact protective housing (class 1 when the door is closed) not only ensures work safety, but also reduces the dispersion of material particles that can arise during engraving. To extract the particles, the “ES Mini” extraction filter system should be connected to the rear of the unit.

Scope of delivery: WeLase marking laser, LaserStyle 9 software, Focus lens 110x110 mm, WiFi connection, Ethernet and sensor cable

Technical data:
Application: for all metals, plastics and engraving materials
Power: 20 Watt
Frequency: 30-60 Khz
Max. Object size (L x W x H): 340 x 200 x 100 mm
Max. Engraving area (L x W): 110 x 110 mm
Max. workpiece height Workpiece height: 100 mm
Minimum line thickness / letter height: 0.04 mm / 0.50 mm
Dimensions (L x W x H): 450 x 560 x 610 mm
Weight: 42 kg
