drilling tailstock (a30d)
drilling tailstock

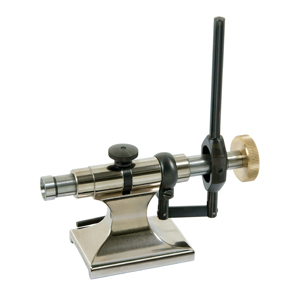

Drilling tailstock (A30D)
The drilling tailstock (a30d) has a swivelling drilling lever and clamping ring for locking the drilling quill during stop work from the spindle side. Suitable for collets (a30 or 683193) and (a12 or 683112) and drill plate (a30h or 683196).
Quill stroke: 25 mm
Range of application:
- for mounting on the cheek (WW80 - WW83)
Weight: 550 g
The drilling tailstock (a30d) has a swivelling drilling lever and clamping ring for locking the drilling quill during stop work from the spindle side. Suitable for collets (a30 or 683193) and (a12 or 683112) and drill plate (a30h or 683196).
Quill stroke: 25 mm
Range of application:
- for mounting on the cheek (WW80 - WW83)
Weight: 550 g
namedrilling tailstock
Versionwith swivel arm
feed sleevethread-Ø 8.0 mm
manufactureWW Leinen
item No.683130
