Crank cross support (A35)

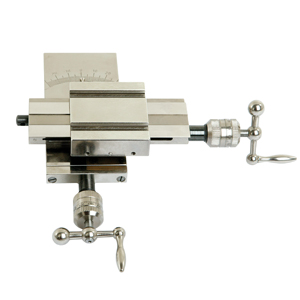

The crank cross support (a35) is used for longitudinal, face and taper turning, covered with spindles. Scale disc with 1/100 mm reading accuracy, swivelling degree division in both directions up to 30°. Height of upper edge of longitudinal slide to spindle centre 9 mm. Attachment of toolpost or quick-change holder possible. The crank cross support is supplied incl. prismatic slide (No. 683200) for attachment to the cheek.
Path in longitudinal direction: 60 mm
Travel in face direction: 45 mm
Range of application:
- for mounting on the cheek (WW80 - WW83)
Scope of delivery:
- Crank cross support (a35)
- Prismatic slider (a1eee)
The crank cross support (a35) is used for longitudinal, face and taper turning, covered with spindles. Scale disc with 1/100 mm reading accuracy, swivelling degree division in both directions up to 30°. Height of upper edge of longitudinal slide to spindle centre 9 mm. Attachment of toolpost or quick-change holder possible. The crank cross support is supplied incl. prismatic slide (No. 683200) for attachment to the cheek.
Path in longitudinal direction: 60 mm
Travel in face direction: 45 mm
Range of application:
- for mounting on the cheek (WW80 - WW83)
Scope of delivery:
- Crank cross support (a35)
- Prismatic slider (a1eee)
namecrank crosspiece support
longitudinal direction60 mm
transverse direction45 mm
manufactureWW Leinen
item No.683135
