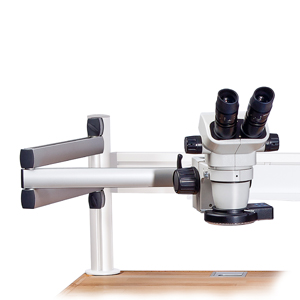

Microscope unit binocular “Flexbo”

The compact “Flexbo” microscope unit is an ideal complement to the expansion of your workbench. Space-saving by a flexible swivel arm this unit can be swung away from the work area when not in use and thus needs only a few inches of space at the work table edge. A special adapter allows you to make the accurate positioning and tilt adjustment of your microscope. It can be mounted at the right or left side of the “Flexbo” tool shelf (Art.-No. 602520) or even as a stand-alone-Version together with the “Flexbo” basic column (Art.-No. 602480).

Scope of delivery:
• Microscope swivel arm with adapter
• Microscope, binocular 6.7x - 45x
• Pair widefield eyepieces 10x/22 mm
• Adapter lens 0.5x
• LED Ring light with 56 LEDs

Specifications:
Execution: binokular
Magnification: 6.7x - 45x (3.35x - 22.5x)
Eye distance: changeable from 54 to 75 mm
Working distance Standard: 110 mm
Working distance with adapter lens: 183 mm
Weight: 9500g

namemicroscope unit bino

Versionbinocular

additionincluding swivelling arm

item No.602492
