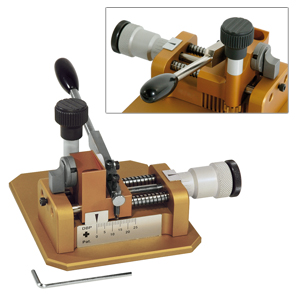

Apparatus for Shortening Stems

The winding stem cutting device is the ideal professional tool for watchmakers who value maximum precision and clean workmanship. It enables burr-free, highly accurate shortening of winding stems without any need for filing or post-processing. Thanks to the integrated micrometer screw, the desired stem length can be adjusted with an accuracy of up to 0.05 mm, ensuring perfect fit and efficient workflow in daily workshop use.

Features:
• Precise length adjustment
The micrometer screw allows millimetre-accurate adjustment of the winding stem length. The lock nut secures the setting reliably so nothing shifts during cutting.
• Burr-free cutting
The cutting lever separates the stem cleanly and without the need for reworking - ideal for fast, professional results.
• Easy operation
With its transport lever, guided carriage and defined support edge, the cutting process is safe, intuitive and consistent.
• Adjustable hole-punch diameters
Factory-set to Ø 0.90 mm, but quickly adjustable to Ø 1.00 / 1.10 / 1.20 mm - perfect for different winding stem sizes.
• Robust workshop quality
A solid, durable precision device designed for daily use in a professional watchmaking environment.

Technical data:
Hole-punch diameter options: Ø 0.9 – 1.0 – 1.2 mm
Dimensions (L x W x H): 130 x 120 x 75 mm
Weight: 1300 g
