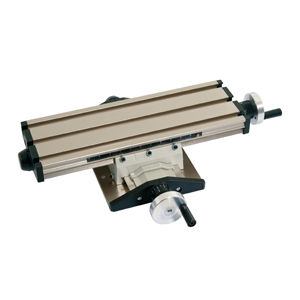

Cross table - coordinate table Xenox TBX
Cross table made of high-strength aluminium with backlash-free adjustable dovetail guides suitable for Xenox TBX bench drill. Three continuous T-slots (12 x 6 x 5 mm). Movable ruler for positioning the cross slide. Handwheels with scale ring adjustable to "0" (1 U = 1.0 mm, 1 graduation mark = 0.05 mm feed). Incl. clamping claws as shown and fixing screws for bench drill TBX.
Technical data:
Dimensions (table): 200 x 70 mm
Adjustment range x (across): 134 mm
Adjustment range y (deep): 46 mm
Overall height: 43 mm
Cross table made of high-strength aluminium with backlash-free adjustable dovetail guides suitable for Xenox TBX bench drill. Three continuous T-slots (12 x 6 x 5 mm). Movable ruler for positioning the cross slide. Handwheels with scale ring adjustable to "0" (1 U = 1.0 mm, 1 graduation mark = 0.05 mm feed). Incl. clamping claws as shown and fixing screws for bench drill TBX.
Technical data:
Dimensions (table): 200 x 70 mm
Adjustment range x (across): 134 mm
Adjustment range y (deep): 46 mm
Overall height: 43 mm
nameCross table
manufactureXenox
span200 x 70mm
item No.695437
