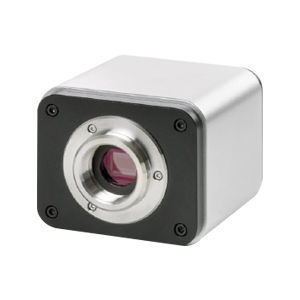

Microscope Camera UHD-4K

High-resolution Ultra HD / 4K UHD 2160p CMOS colour camera with HDMI, LAN and 3x USB interfaces. With the latest horizontal screen resolution of 3,840 pixels (2160p) and new 4K screens, the 4K Sony Ultra HD camera offers a new solution for modern microscopy in industry, where more spatial detail and contrast are required.

The menu can be displayed directly on the screen. This allows images, videos or camera settings to be easily changed with a simple click. Stored images and videos can be easily reviewed without the need for a computer. These important features make the cameras ideal for real-time examinations, education and live demonstrations.

The camera can be connected to almost all microscopes with an optional C-mount adapter. Users can also connect the UHD-4K camera to a computer via the USB 2 interface. The included ImageFocus Alpha software provides more camera and image controls, annotations and measurement functions on live and recorded images. Compatible with Windows 10 and higher (32 and 64 bit versions) and Linux. A Mac OS version is also included (with some differences in features/equipment).

Technical specifications:
Sensor type: Sony 4K
Format: 1/1.8”, (7.68 x 4.32)
Resolution: 3840 x 2160, 60 fps, USB 30 fps
Pixel size: 2.0 x 2.0 (µm)
Video: 8.3 MP (3840 x 2160)
Video output: HDMI 2.0 USB-3
Sensitivity: 3541 mv at 1/30 s
Interfaces: Digital HDMI, USB-3
Software: ImageFocus Alpha
Compatible: Win 10 and higher, Linux, Mac OS
C-mount with lens: 0.5x
Dimensions (W x D x H): 88 x 78 x 65 mm
Weight: 480 g
