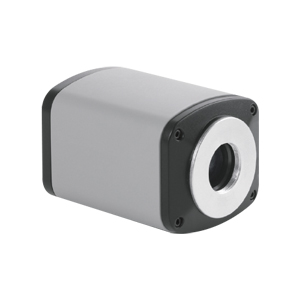

HD-Lite microscope camera

The live images produced by this camera offer excellent colour reproduction at up to 15 frames per second. All settings are automatic and therefore very user-friendly. Simply connect to an HDMI screen, TV or beamer with HDMI input. With the HD-Lite's mouse-controlled software, images and 1080p videos (.avi format) can be captured directly onto the integrated SD memory card.

The menu can be displayed directly on the screen. This makes it easy to change images, videos or camera settings with a simple click. Stored images and videos can be easily reviewed without the need for a computer. These important features make the cameras ideal for real-time investigations, education and live demonstrations.

The camera can be connected to almost all microscopes with an optional C-mount adapter. Users can also connect the HD-Lite camera to a computer via the USB-2 interface. The included ImageFocus Plus software enables more camera and image controls, annotations and measurement functions on live and recorded images. Compatible with Windows 7, 8 and 10, 32 and 64 bit.

Technical specifications:
Sensor type: Aptina
Format: 1/2.5", HDTV 1080p
Resolution: 2592 x 1944 (1), 1920 x 1080 (2), HDMI 15 fps, USB 15fps
Pixel size: 2.2 x 2.2 (µm)
Video: 1080p
Video output: HDMI, USB 2.0
Sensitivity: 1 V
Interfaces: Digital HDMI, USB-2
Software: ImageFocus Plus
Compatible: Win 7, 8 and 10, Mac OS
C-mount with lens: 0.45x
Dimensions (W x D x H): 80 x 70 x 90 mm
Weight: 280 g
