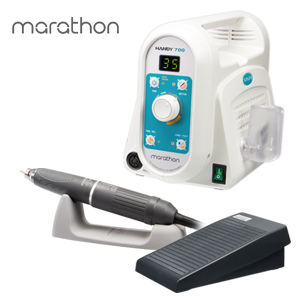

Micromotor Marathon Handy 700

Powerful and smooth running grinding, milling and polishing motor with high technology. Brushless and vibration-free handpiece with high torque for professional use. The quick release handpiece is in spite of the extreme strong torque of 7,8 Ncm with optimal grip and is ideally suited for continuous daily use. Combination unit with two connections for brushless, as well as carbon brushes handpieces.

Features of the "Marathon Handy 700":
- Quick release handpiece with shaft Ø 2.35mm
- Powerful , brushless drive
- Ergonomic design
- Low vibration (less than 0.01mm at full power)
- Heat resistant and chemically resistant
- High torque (7.8 N/cm), also in lower speed
- Infinitely variable speed adjustment up to 50.000rpm.
- Right- / left-running switchable
- Choice of hand or foot control
- Connection for second handpiece
- Integrated self-diagnostic program
- Max. speed limit freely adjustable
- Foot pedal with infinitely variable control

Speed: 1.000 to 50,000 rpm.
Performance Micro Motor: 230 Watt
Mains power supply: 200-240V ~ 50/60Hz

Scope of delivery:
- Micromotor control unit
- Ergonomic quick release handpiece
- Handpiece support + handpiece holder
- Foot switch
- Power cable + service tool

Dimensions (control unit) (W x D x H): 137 x 232 x 180 mm
Weight (control unit): 2700g
Dimensions (hand piece) (Ø x L): 26.2 x 159.8 mm
Weight (hand piece): 238g


versionstandard package

modelHandy 700


item No.692120
