WELLNER lapping machine MFS-1/2
Lapping machine

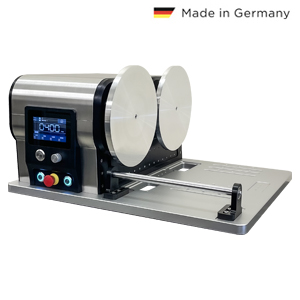

Double lapping machine WELLNER MFS-1/2
The MFS-1/2 from WELLNER is a compact and powerful double lapping machine that meets the highest demands. Equipped with two lapping discs, each with its own drive, it enables precise and versatile processing of surfaces and edges.
Thanks to the second disc, either two different grit sizes can be used or, alternatively, a table and a lapidation bar with lapidation quill can be used at the same time - without the need for time-consuming conversions.
Efficient processing for perfect results
With the MFS-1/2, you can work efficiently in the restoration and finishing of old, damaged housings, hinges and workpieces or give them a unique finish. This not only enhances the visual impression, but also the value of your workpieces.
The two independently rotating discs allow you to quickly switch between different grit sizes and work steps. The base plate offers space for up to two support tables or guide rails and ensures safe and flexible handling.
The discs can be switched separately for increased work safety. This prevents the risk of injury from a simultaneously rotating front disc while the rear disc is in use.
High-quality workmanship & intuitive operation
The MFS-1/2 impresses with its modular design and high-quality workmanship - completely Made in Germany. It is equipped with powerful and high-torque spindle motors, which are installed in a CNC-milled housing with an ergonomic design.
The speed of 0-3,000 rpm can be precisely set using a classic rotary knob or the large touchscreen display. Operation is intuitive, even ‘blind’, via tactile buttons. Settings and descriptions are clearly managed via the display.
For even greater efficiency, the machine offers 10 freely editable work modes, each with four memory locations for work steps and processes. This means that individual machining processes can be repeated exactly at any time. The currently set speed is shown on the large, easy-to-read display. An emergency stop switch ensures maximum safety during operation.
Scope of delivery:
Double lapping machine MFS-1/2 with 2x aluminium discs, base plate, 1x guide rod, mains cable.
Technical data:
Disc Ø: 240 mm
Speed: 0 - 3,000 rpm.
Power: 1.4 KW S6 (40%)
Mains connection: 230V / 50Hz (110 VAC optional)
Base plate dimensions (W x D x H): 605 x 550 x 15 mm
Housing dimensions (W x D x H): 260 x 280 x 260 mm
Weight: 55 kg
nameLapping machine
RPM0 - 3.000 rpm
discs Ø2x 240mm
output1400 Watts
item No.693401
