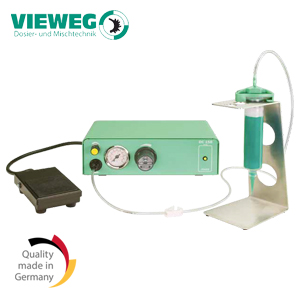

DC 150 Dosing Unit

The DC 150 is designed to control pneumatic dosing processes, for example from small cartridges with a capacity of 3 to 80 ml. It is recommended for dosing applications that are controlled exclusively manually and do not require a timer. The dosing pressure acting on the material in the cartridge can be precisely preset via the compressed air regulator and is typically activated via optional finger or foot switches.

The DC 150 is suitable for all types of media and features a vacuum retention system to prevent dripping of low-viscosity media.

Features:
• Cost-effective system with high reliability
• Continuous dispensing cycle
• Drip-proof thanks to vacuum suction
• Pressure gauge for compressed air adjustment
• CE mark
• 5 to 7 bar compressed air inlet
• 24 V DC operating voltage
• 85–264 V AC 50/60 Hz power supply

Technical data:
Pressure display: analogue
Time range: 0.01–31 s
Compressed air inlet: 5–7 bar
Compressed air outlet: 0–7 bar
Dosing method: manual
Input voltage: 100–240 V AC
Dimensions (W x D x H): 225 x 135 x 75 mm
Weight: 1300 g
