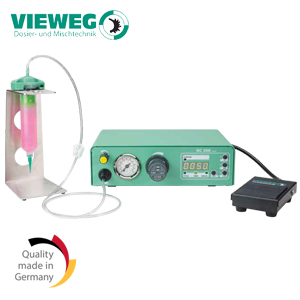

DC 370 Dosing Unit

The DC 370 dosing unit offers precise control and monitoring of the dosing process, making it ideal for technical applications across a wide range of industrial sectors. With a digital display and the option to switch between manual and time-controlled dosing, the unit allows for flexible use. Inlet pressure is monitored via a pressure sensor with fault indication, whilst the compressed air output is adjustable between 0.1 and 7 bar.

Features:
• High process reliability thanks to digital display
• Timer and cycle operation
• Inlet pressure monitoring via pressure sensor and fault indicator
• Drip-proof design thanks to vacuum back-suction
• Pressure gauge for compressed air adjustment

Technical data:
Pressure display: analogue
Time range: 0.01–9999 s
Compressed air inlet: 0–7 bar
Compressed air outlet: 0–7 bar
Dosing method: manual / time-controlled
Input voltage: 100–240 V AC
Dimensions (W x D x H): 225 x 135 x 75 mm
Weight: 1300 g
