ProofMaster CP PRO
• -0.5 to 5 bar, up to 2 pressure levels per test
• 8 fixed test programmes, 50 freely parameterisable test programmes, WiCoTRACE programmes
• Result memory for 100 measurements
• LeakFinder function for locating leaks
• Built-in compressor for pressure and vacuum
Waterproof tester Previous product1/2Next product

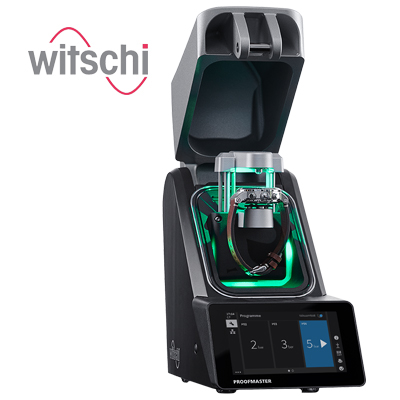

Witschi ProofMaster CP PRO, tightness tests made easy!
The ProofMaster CP PRO does not need a compressed air supply thanks to its integrated compressor. Moreover, its smart test programmes, automatic test chamber and sensor actuation that all tightness tests can be carried out without a hitch. The ProofMaster’s high-performance testing algorithm delivers high precision and reliability.
A complete testing solution for boutiques and service: connect your ChronoMaster to the ProofMaster to analyse rate deviation, beat error and amplitude directly on your screen – and with the ChronoMaster Air, the process is wireless too. This enables you to deliver comprehensive watch testing with ease in both your shops and your service centres. The ProofMaster CP PRO can work as a standalone device or it can be connected directly to a WiCoTRACE database. WiCoTRACE provides additional analysis and export features as well as professional local and central results management.
NO external compressor necessary!
Features:
• Integrated quiet and high-performance compressor up to 5 bar and -0.5 bar vacuum
• Intuitive user interface with 5-inch touchscreen
• Increased productivity thanks to a fast measurement algorithm
• Completely automatic sensor input and test chamber closure and locking
• ScratchProtect: adjustable watch support for efficient protection against scratches
• Increased measurement robustness with shock and vibration detection
• Display of rate, beat error and amplitude when connected to a ChronoMaster or ChronoMaster Air
• Connect to a barcode scanner to identify the watch
• Automatic sensor actuation and chamber closure
• Quick select - simple and fast parameterisation
• 8 fixed test programs
• 50 parametrisable test programs with display (adjustable limit and measurement time)
• 100 results memory
• LeakFinder
• WiCoTRACE
Technical data:
max. vacuum: up to -0.5 bar
max. pressure: up to 5 bar
Measuring range: -0.5 to 1.2mm
Display deformation: 0.01 µm
Measuring range variable: 10- max. 150 s
Power supply: 230 V / 50 hz
Dimensions (W x D x H): 149 x 243 x 305 mm
Weight: 6.300 g
WITSCHI 31.25PK1
nameWaterproof tester
manufactureWitschi
typeProofMaster CP PRO
item No.609518
