Stereo microscope unit for setters and engravers

Premium stereomicroscopes by Kern are characterised by their value for money and high quality; since they are 100% parafocal, the image always remains razor-sharp.

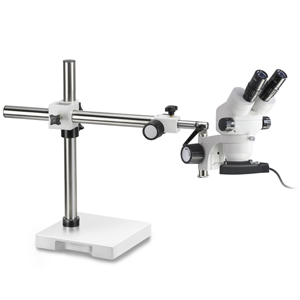

The OZM-546 “setter version” is fitted with a stable, compact swivelling tripod with swivel foot. The horizontal swivel arm can be adjusted in all directions. Maximum spacing of the vertical tripod post from the optical axis is 660 mm. Maximum observation height is 300 mm. The OZM-546 is fitted with a 45° inclined, 360° rotatable trinocular fitting with two fixed wide-field 10x/23mm eyepieces. They have a dioptre adjustment and the eye-spacing may also be adjusted, between 52 and 76 mm; together with the wide-field eyepieces included in the scope of delivery, magnifications between 7.0x and 45x are available. Other magnifications can be achieved by using additional resolution lenses.

The OZM-546 is 100% parafocal, meaning that the image remains razor-sharp during the complete zoom manoeuvre. The magnification can be altered without the focus setting of the microscope having to be reset.

Scope of delivery:
• OZM-546 microscope binocular
• Table Stand with swivel arm
• Adapter lens 0.7x (for greater working distance)
• LED ring light

Technical details:
Tube: binocular, zoom ratio 1:6,4
Magnification: 7.0x - 45x / 3,5x -22,5x
Working distance: 110 mm - 145 mm (optionally extendable up to 275mm)
Field of vision: 32,8-5,1mm / 46,9-7,3
Lighting: ring lighting with 72 LEDs
Stand foot: (L x B x H): 255 x 255 x 515 mm
Optional extra: table clamp to let into the workbench.
