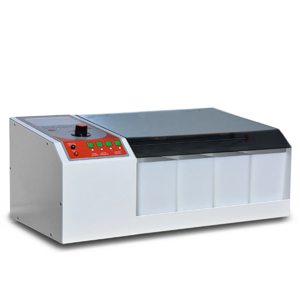

Electroplating unit Digital II - Version 2.0

The Digital II version 2.0 is a programmable small-size electroplating unit which can be used for all current precious metal and non precious metal processes. The machine is characterized by it's user friendliness and the easy handling.The digital display of voltage, tension and temperature guarantees a careful and secure working. The integrated timer stops processes automatically and the ampere minute counter helps to calculate the precious metal consumption. In addition to pre installed plating programs, new programs can be installed. The machine menu is available in several european languages. Digital II version 2.0 has an integrated goods movement and a pen plating connection.

Advantages:
- Ampere minute counter guarantees an overview in precious metal accounting
- Several programs are flexible to adjust and to store. This guarantees safe and accurate process for a constant high quality
- Safety by a high quality, metal welded case

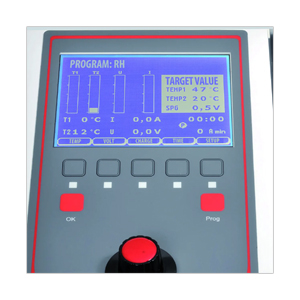

- Easy to handle and to adjust by digital display of voltage and temperature
- Two flexible heaters installable

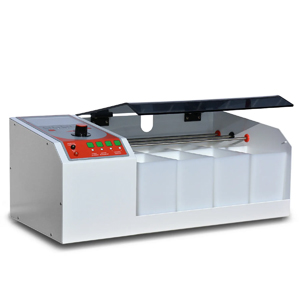

- With integrated splash-guard cap for a higher security
- Efficient electroplating by convertible tanks
- Integrated goods movement

Scope of delivery:
- Digital II - Version 2.0
- Folding housing cover
- 8 plastic trays made of PP (4 working and 4 rinsing trays á 1.5 L)
- Temperature sensor with titanium holder
- Safety protection power cable

*** Heater ist not included ! ***

Technical details:
Bath volume: 4x1,5 l working tanks + 4x 1,5 l rinsing tanks
Bath dimensions: 150 x 100 x 150 mm
Rectifier: 15V/ 15A
Controlled heating: 2x 200W
Supply voltage: 230V/ 50Hz
Dimension (W x D x H): 480 x 330 x 260 mm
Weight: 18,5 kg
